• Right-angle and convex solution ready.
• The modules are connected in star link instead of daisy chain to
  avoid the inline failure.
• Single cable connection for both power and data to simply the
  cabling. The waterproof air plug to the control/power backpack
  provides the stable connection.
• The module and control/power box are independent to each other, to improve the uniformity and eliminate the heat influence.

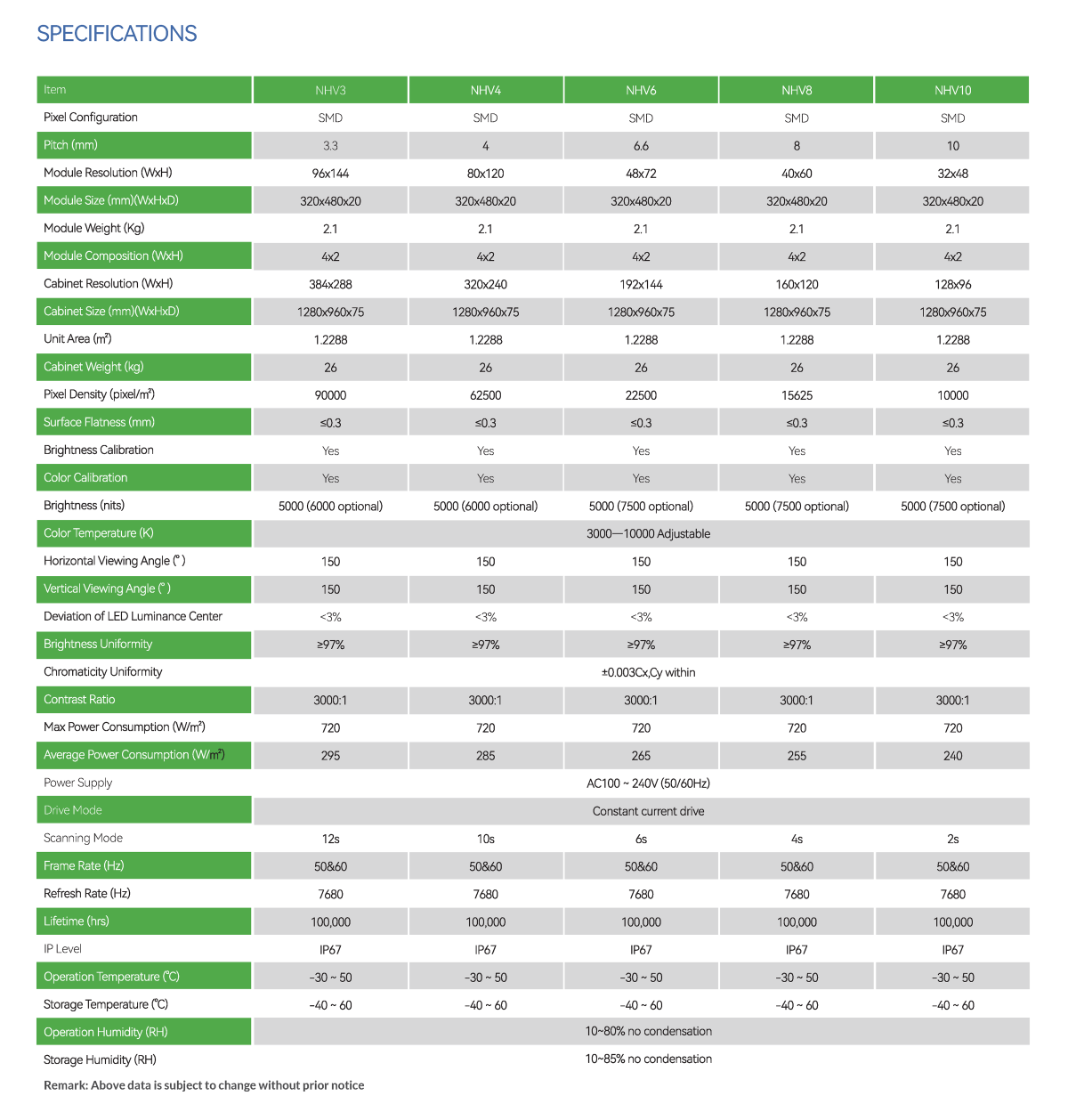

NHV3/NHV4/NHV6/NHV8/NHV10

3.3mm/4mm/6.6mm/8mm/10mm

Cabinet Size(WxHxD)-1280x960x75mm

High Refresh Rate-7680Hz

Horizontal Viewing Angle-150dg/ Vertical Viewing Angle-150dg

>7500nit White Balance Brightness Up to.
>3000~10000K Color Temperature Adjustable Color Realistic.

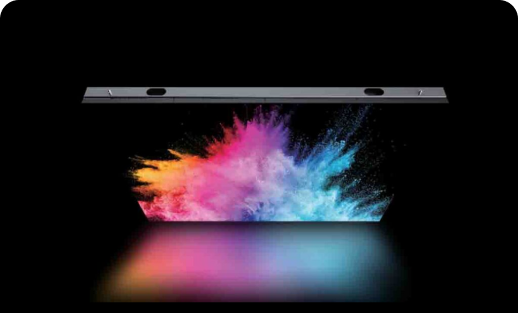

7500nits high brightness intelligent module design, support HDR, 16bit + 9bit processing mode, display more dynamic range and image details.

>The image is very stable under the cameras of the mobile phones.
>Barcode is readable by the mobile phones to enable a more efficient interactive advertisement.

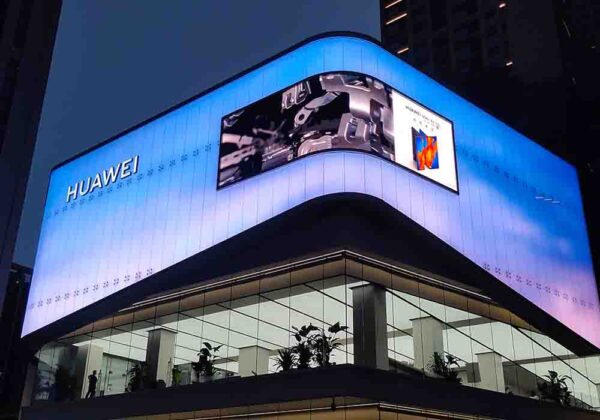

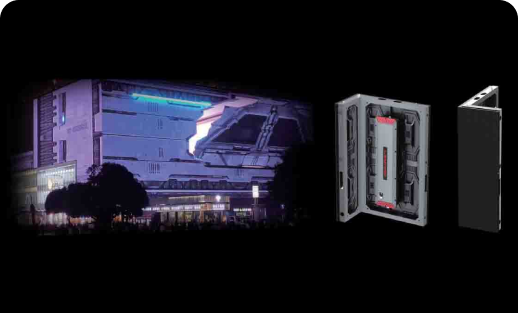

NHV series can be spliced into right angles or curved shapes.

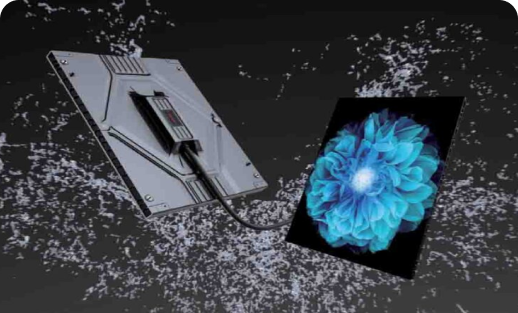

Waterproof breathing value can ensure that the gas can go in and out freely, while water molecules will not enter, and it is safe to use in rainy and wet conditions.

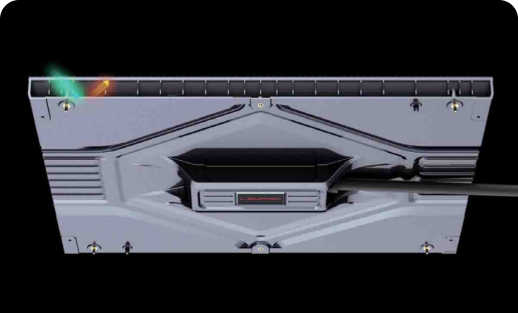

The LED module adopts star connection, independent waterproof module and independent control combination. Integrated power and signal combination “star” connection. Independent units work separately, thermal insulation to avoid mutually interference.
